Horizon 2020 RESTORE Project Model Library

Overview
86 Available Units
Example Projects

RESTORE – Renewable Energy based seasonal Storage Technology in Order to Raise Economic and environmental sustainability of DHC

RESTORE proposes a radically innovative solution for DHC, based on the combination of two key innovative technologies, that allows integrating a wide variety of renewable technologies combined with competitive seasonal storage in DHC networks, allowing them to be 100% renewable to radically improve their environmental sustainability.

The first technology the project aims to develop is an innovative thermal energy storage system based on thermochemical reactions, the Thermochemical Energy Storage (TCES), that provides daily and seasonal competitive energy storage due to its high energy density, very low energy losses and its low cost. The system represents a key development due to the fact that it allows harnessing the enormous amount of energy that is normally wasted due to the mismatch between energy demand (loads) and energy generation (related to the availability of renewable resources or waste heat), mainly occurring between seasons. In addition, the project aims to develop a second technology based on Heat Pump (HP) and Organic Rankine Cycle (ORC) combined with the TCES system. This second technology adapts the energy provided by different renewable technologies to feed the storage system, thus a wide variety of renewable technologies and waste heat can be integrated into the whole system to finally supply the energy demand under the specific conditions laid down by each DHC.

This radically innovative solution would tackle the main barriers to a wide deployment of renewable energy technologies and waste heat in the existing and future DHC networks. The project considers the experimental validation of the RESTORE concept and also the demonstration of the concept replicability potential, adapting and optimizing the proposed solution to different real sites (different network conditions and local particularities as the available renewable technologies/waste heat) spread over the EU, and quantifying its potential benefits via virtual use-cases.

Additional information about the project can be found here: https://www.restore-dhc.eu/

Library Author
SimTech GmbH
Keywords
Thermochemical Energy Storage, TCES, Organic Rankine Cycle, Reversible Organic Rankine Cycle, Heat Pump, District Heating, District Cooling, Horizon 2020
Version
0.98.21
gear
gears
generator
generator
G_OR_Htex
heat exchanger for transfer from gas on hot side to organic fluid on cold side
G_Pipe
pipe for gas streams
G_Sink
sink for a gas stream
G_Source
source for a gas stream
mech_loss
mechanical loss
motor
motor
optimization
optimization element
OR_Boiler
simple boiler model for ORC fluids
OR_Compressor
compressor for ORC fluids
OR_Condenser
condenser for ORC fluids, water cooled
OR_Condenser_a
condenser for ORC fluids, air cooled, dry
OR_Connector
connector for ORC streams to be used in closed loops
OR_Expander
expander for ORC fluids
OR_G_Htex
heat exchanger for transfer from ORC fluid on hot side to gas on cold side
OR_Htex
general purpose heat exchanger for ORC fluids
OR_Heat_sink
heat sink for usage with OR streams
OR_Heat_source
heat source for usage with OR streams
OR_Mixer
mixer for ORC streams
OR_Pipe
pipe for ORC fluids
OR_Pump
pump for ORC fluids
OR_Properties
calculation and display of physical properties of OR fluids
OR_Separator
vapour-liquid separator for ORC fluids
OR_Splitter
splitter for ORC streams
OR_Sink
sink for an ORC stream
OR_Source
source for an ORC stream
OR_Turbine
turbine for ORC fluids
OR_T_Htex
heat exchanger for transfer from ORC fluid on hot side to thermofluid on cold side
OR_Valve
valve for ORC fluid
OR_W_Htex
heat exchanger for transfer from ORC fluid on hot side to water on cold side
OR_Xprescription
prescription/calculation of vapor quality of an ORC fluid
OR_wall_htex
heat exchanger with wall transferring heat from organic fluid (OR) to another side
RESTORE_EA
component model supplying economic analysis information
TCM_CD_Transformer
transformer to combine charging and discharging operations of TCM
TCM_Connector
connector for TCM to be used in closed loops
TCM_Heat_sink
heat sink for TCM
TCM_Heat_source
heat source for TCM
TCM_Htex
heat exchanger for transfer from TCM fluid on hot side to TCM fluid on cold side
TCM_Mixer
mixer for TCM streams
TCM_Pipe
pipe for thermochemical material (TCM)
TCM_Pump
pump for TCM fluids
TCM_Reactor_Charging
Reactor for charging step of TCM. High temperature side transferring heat to the reactor is optional. Different heat delivering working fluids (OR_ or T_) can be connected.
TCM_Reactor_Discharging
Reactor for discharging step of TCM. Low temperature side receiving heat from the reactor is optional. Different heat receiving working fluids (OR_or T_) can be connected.
TCM_Separator
separator for TCM stream
TCM_Sink
sink for a TCM stream
TCM_Source
source for a TCM stream
TCM_Splitter
splitter for TCM streams
TCM_T_Htex
heat exchanger for transfer from TCM fluid on hot side to thermofluid on cold side
TCM_Valve
valve for TCM stream
TCM_W_Separator
separator for water from TCM stream
T_Connector
connector for heat transfer fluids to be used in closed loops
T_Heat_sink
heat sink for heat transfer fluids
T_Heat_source
heat source for heat transfer fluids
T_Htex
general purpose heat exchanger for heat transfer fluids
T_Mixer
mixer for heat transfer fluid streams
T_OR_Htex
heat exchanger for transfer from thermofluid on hot side to ORC fluids on cold side
T_Pipe
pipe for heat transfer fluids
T_Pump
pump for heat transfer fluids
T_Splitter
splitter for heat transfer fluid streams
T_Sink
sink for a heat transfer fluid stream
T_Source
source for a heat transfer fluids
T_TCM_Htex
heat exchanger for transfer from thermofluid on hot side to TCM fluid on cold side
T_W_Htex
heat exchanger for transfer from thermofluid on hot side to water on cold side
T_wall_htex
heat exchanger with wall transferring heat from thermooil (T) to another side
W_Compressor
compressor for steam
W_Connector
connector for closed loops
W_Heat_sink
heat sink for water streams
W_Heat_source
heat source for water streams
W_Mixer
mixer for water streams
W_OR_Htex
heat exchanger for transfer from water on hot side to OR fluid on cold side
W_Pipe
pipe for water
W_Pump
pump for water
W_Sink
sink for a water stream
W_Source
source for a water stream
W_Splitter
splitter for water streams
W_T_Htex
heat exchanger for transfer from water on hot side to thermofluids on cold side
W_Valve
valve for water
W_Xprescription
prescription/calculation of steam quality
electricity_meter
electrical power consumption or production meter
flow_meter
flow meter
free_var
free variable
heat_meter
heat consumption or production meter
time_counter
time counter used for measuring and displaying time intervals
wall_OR_htex
heat exchanger with wall transferring heat from wall to organic fluid (OR)
wall_T_htex
heat exchanger with wall transferring heat from wall to thermooil (T)

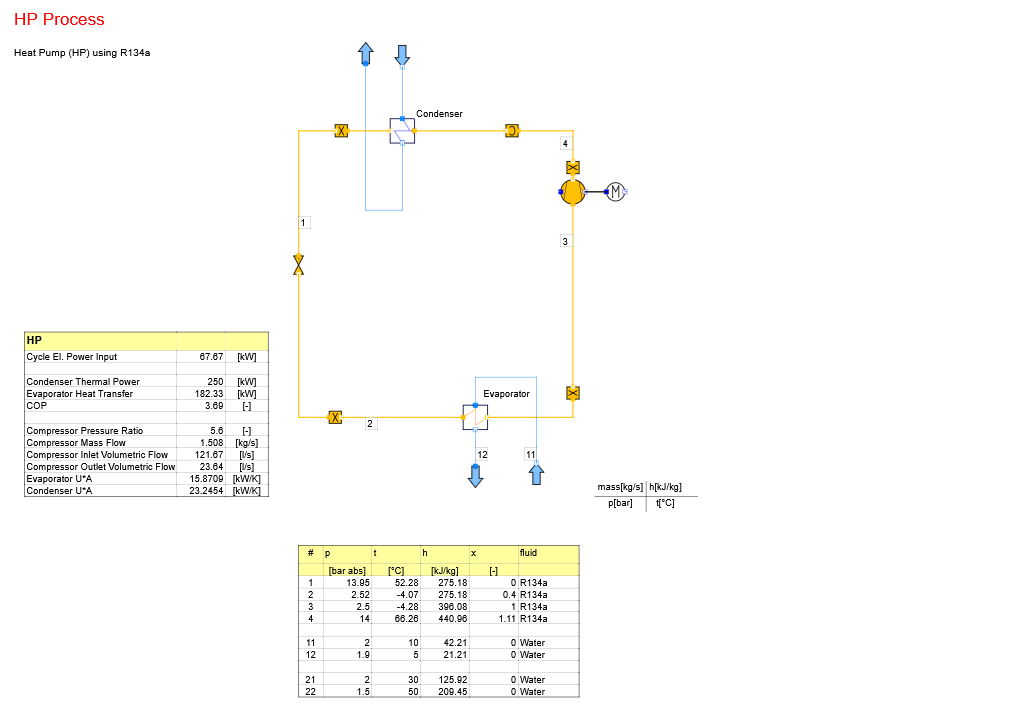

Demo_HP
Basic compression heat pump process using R134a as working fluid. Low and high temperature secondary sides using water.

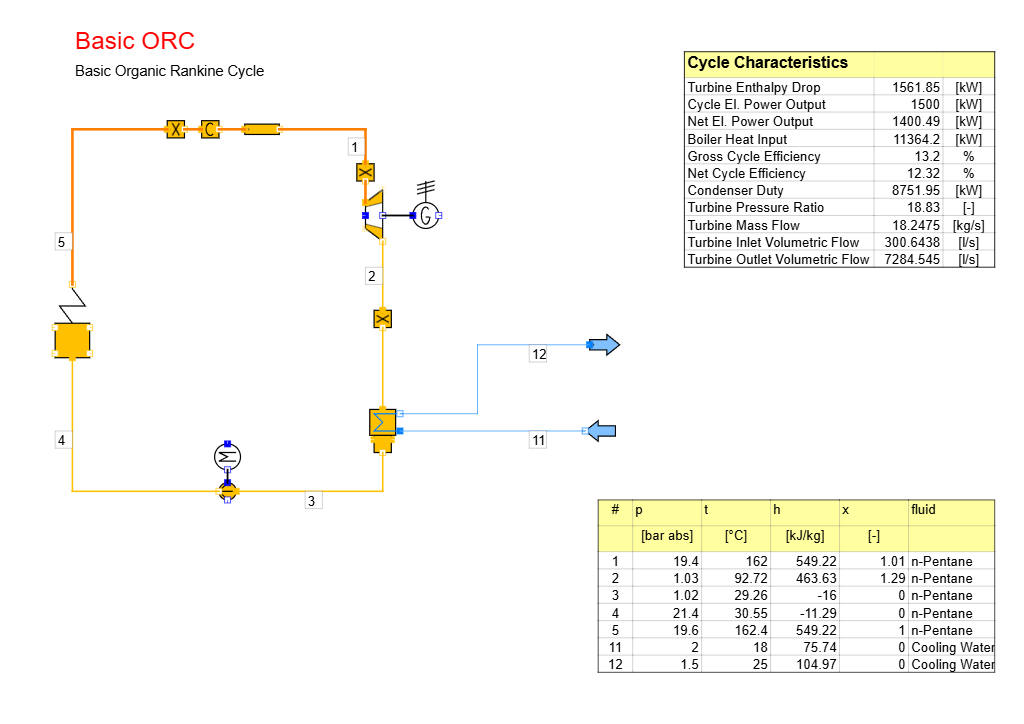

Demo_ORC_basic
Basic Organic Rankine Cycle (ORC) Process using n-Pentane as working fluid. Condenser is water cooled.

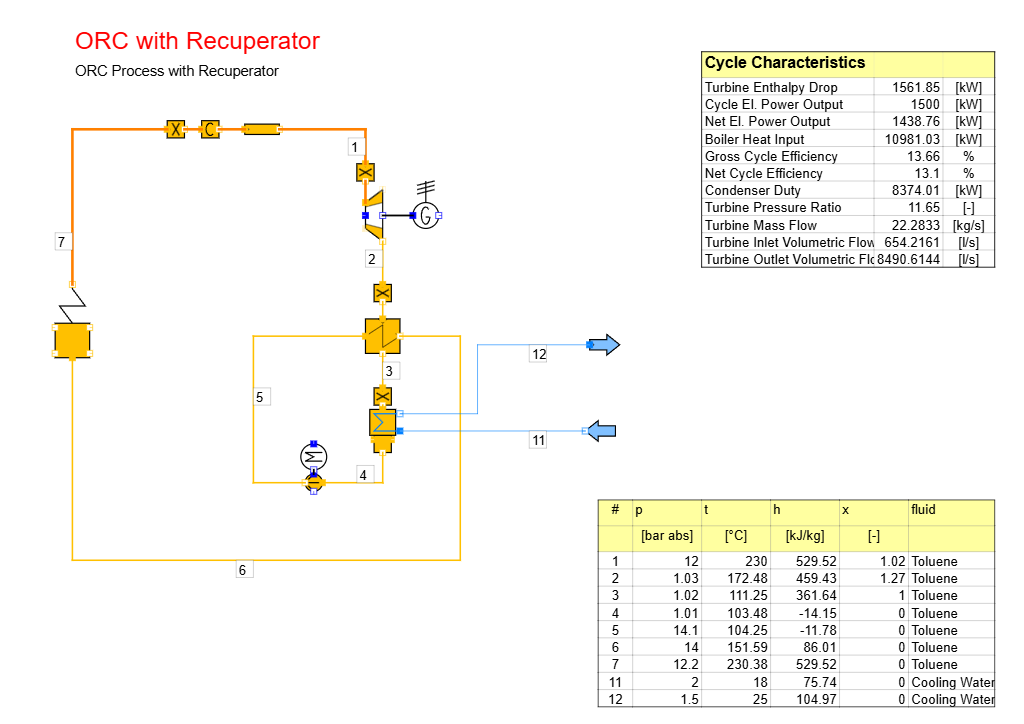

Demo_ORC_with_Recuperator
Organic Rankine Cycle (ORC) process using toluene as working fluid with an internal heat recuperator to increase the thermal efficiency. The condenser is water cooled.

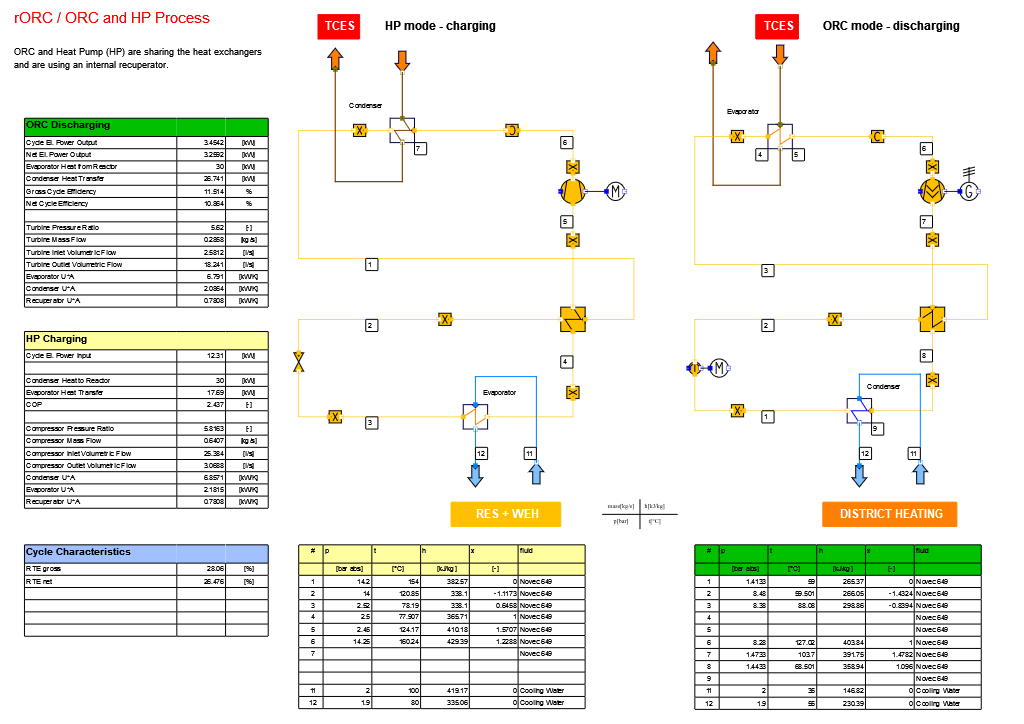

Demo_RESTORE_rORC
Demonstration model of the reversible ORC process for charging and discharging interaction with TCES as envisaged within the RESTORE project.

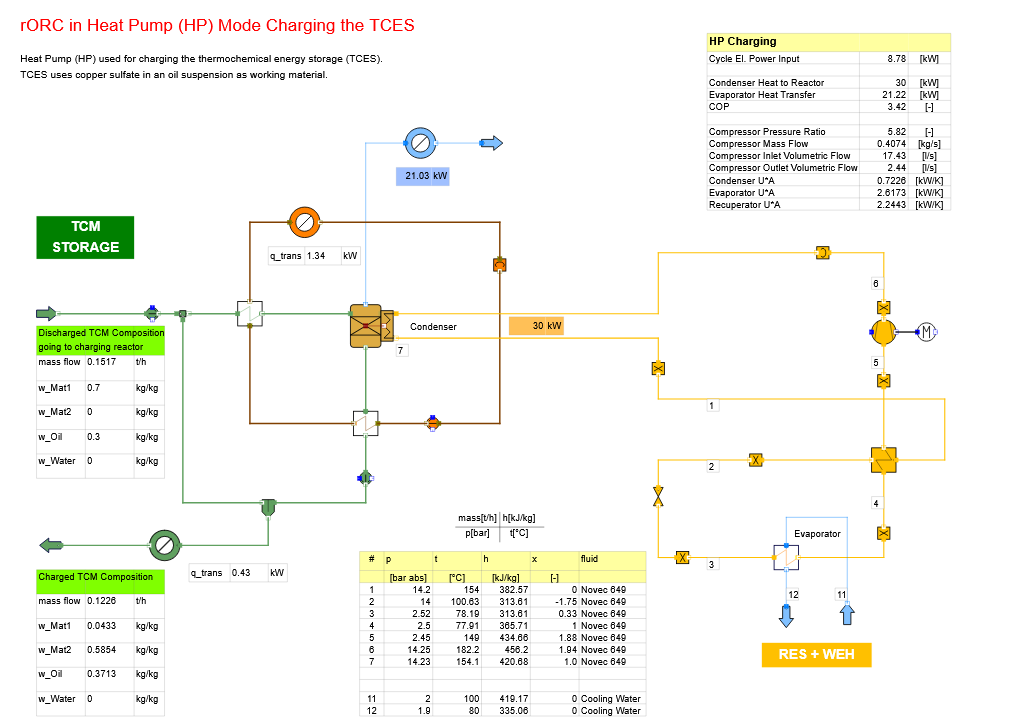

RESTORE rORC HP mode charging TCES
Demonstration model of the reversible ORC process for charging the thermochemical energy storage (TCES). TCES uses copper sulfate in an oil suspension as working material.

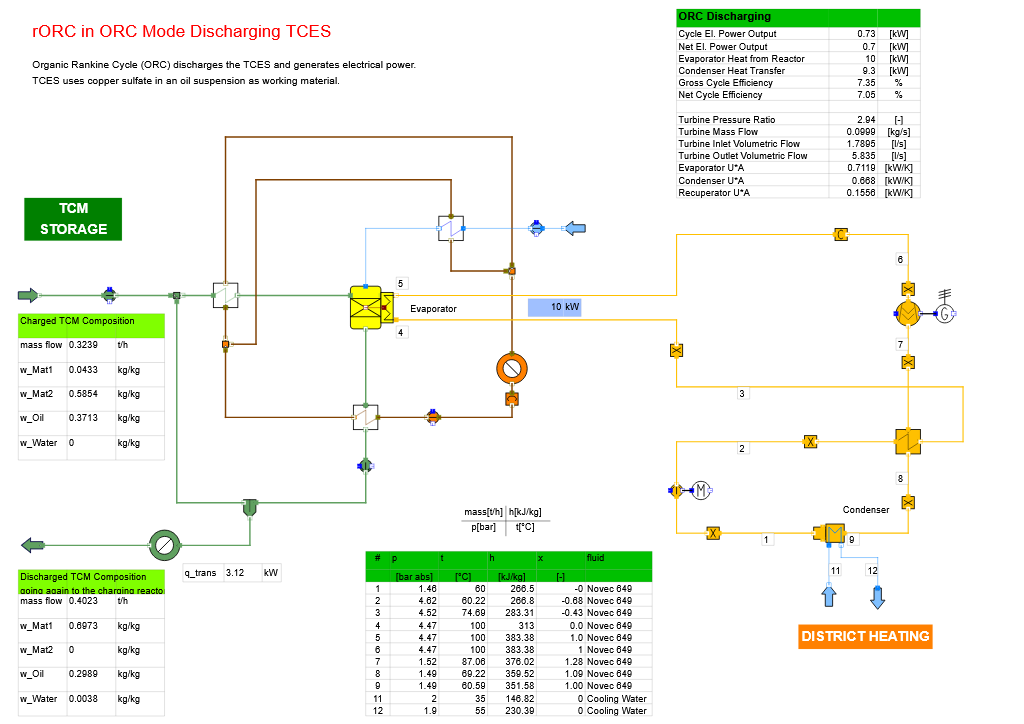

RESTORE rORC ORC mode discharging TCES
Demonstration model of the reversible ORC process for discharging the thermochemical energy storage (TCES). TCES uses copper sulfate in an oil suspension as working material.

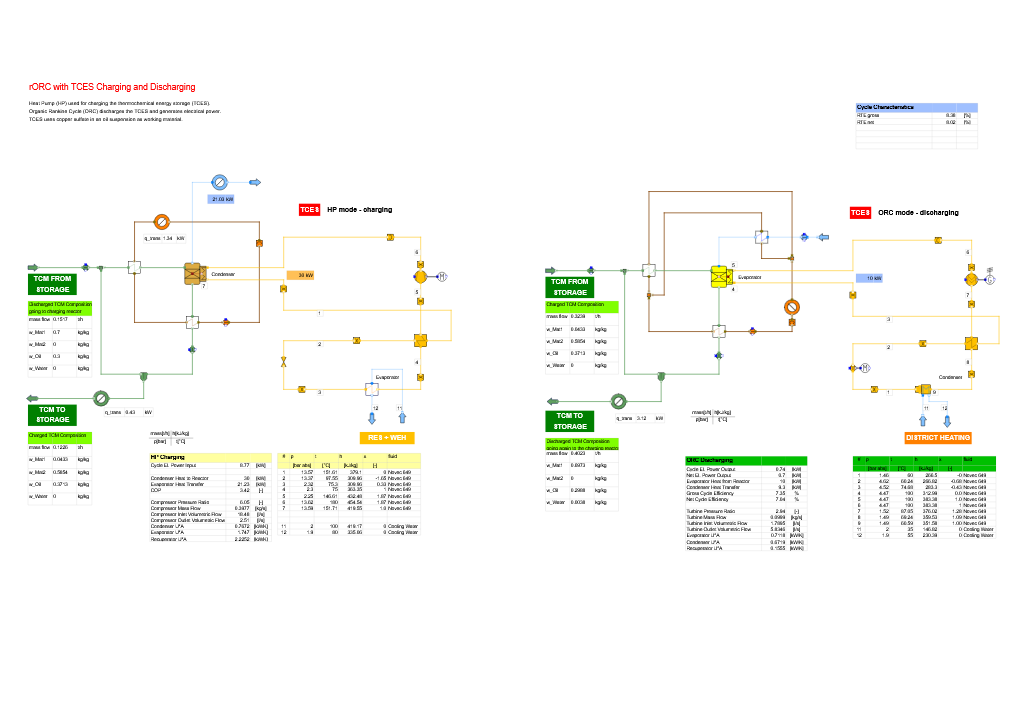

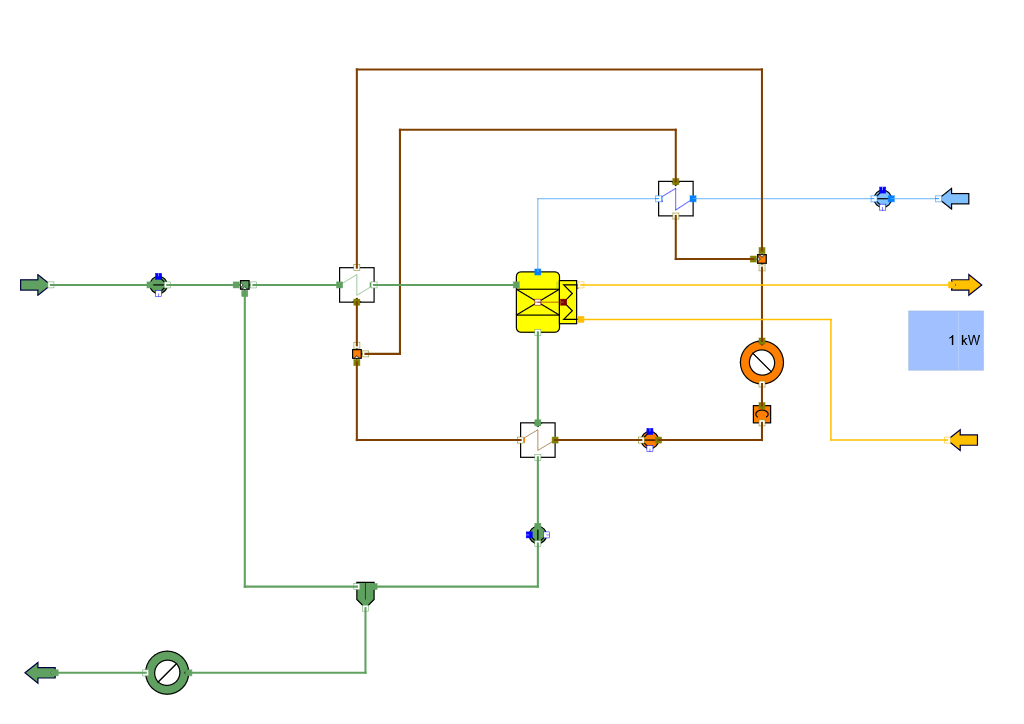

RESTORE rORC with TCES
Demonstration model of the reversible ORC process for charging and discharging interaction with thermochemical energy storage (TCES). TCES uses copper sulfate in an oil suspension as working material.
TCM_Charging_Step
Preliminary model depicting the charging step of the thermochemical material. Different storage material pairs can be selected.

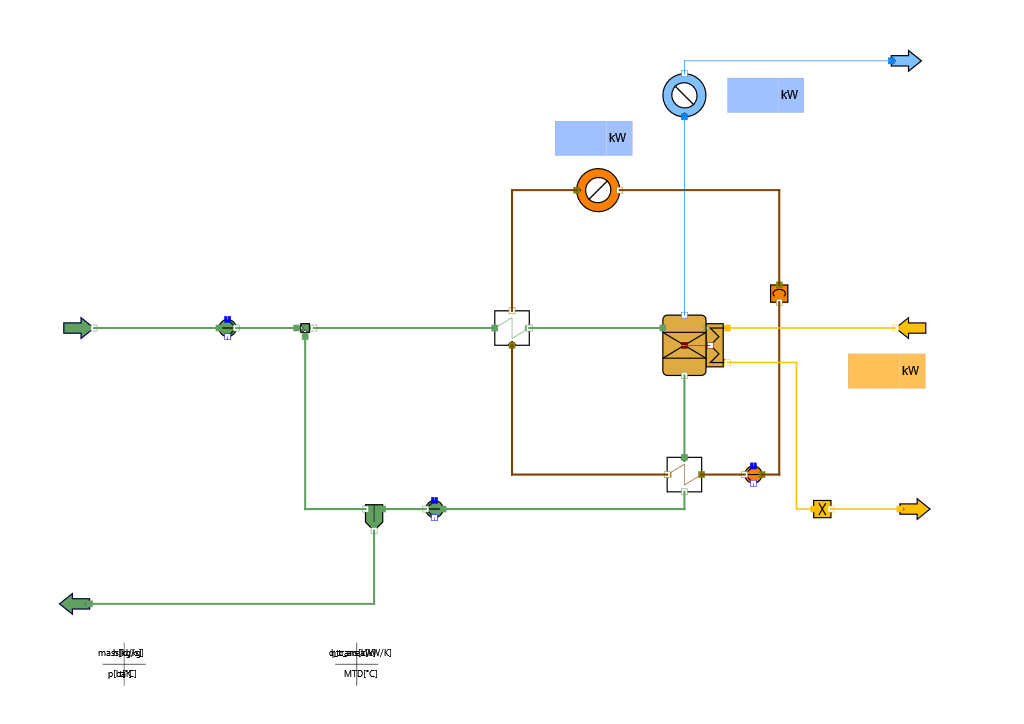

TCM_Discharging_Step
Preliminary model depicting the discharging step of the thermochemical material using thermooild for heat transfer. Different storage material pairs can be selected.
